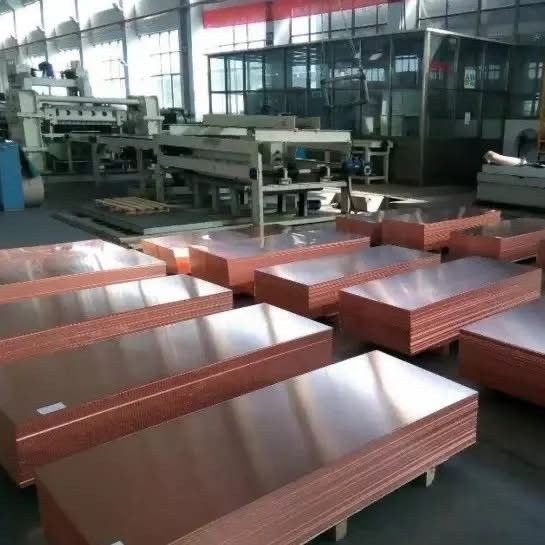

2. Temper

• M: Soft (annealed, for deep drawing & bending)

• Y4: 1/4 Hard

• Y2: 1/2 Hard (general stamping)

• Y: Hard

• T: Extra‑hard

3. Dimension

• Coil/strip thickness: 0.05‑3.0 mm; Plate thickness:0.3‑100 mm

• Width:10‑1250 mm, custom slitting available

• Plate: custom cut‑to‑length

• Tolerance: thickness & width tolerance comply with GB/T2059 or ASTM, specified in contract.

4.  Surface Finish

Mill, bright, pickled, oiled, hair‑line, mirror, sand‑blast. Oiled surface recommended for stamping to avoid scratch & oxidation.

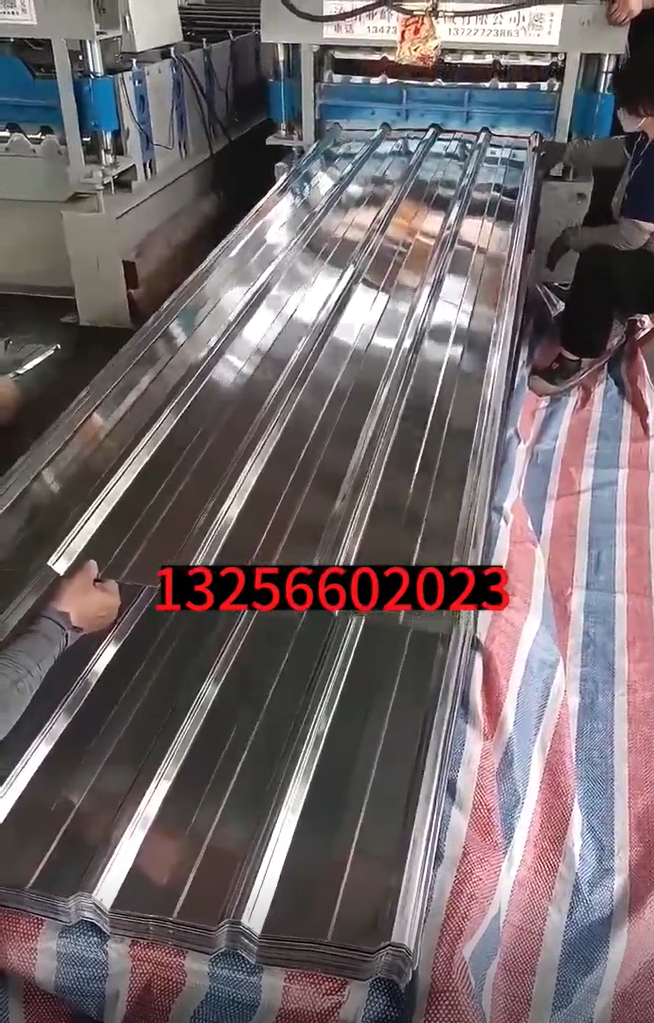

    3. Profile / Wave pattern

     Specify effective cover width, wave height and wave pitch.

     Typical profiles:

     ‑840 profile: effective cover width 840 mm, wave height 25 mm (popular for roof)  .

     ‑900 profile: effective cover width 900 mm (mainly for wall) .

     ‑760 / 820 standing seam profile for large‑span roof.

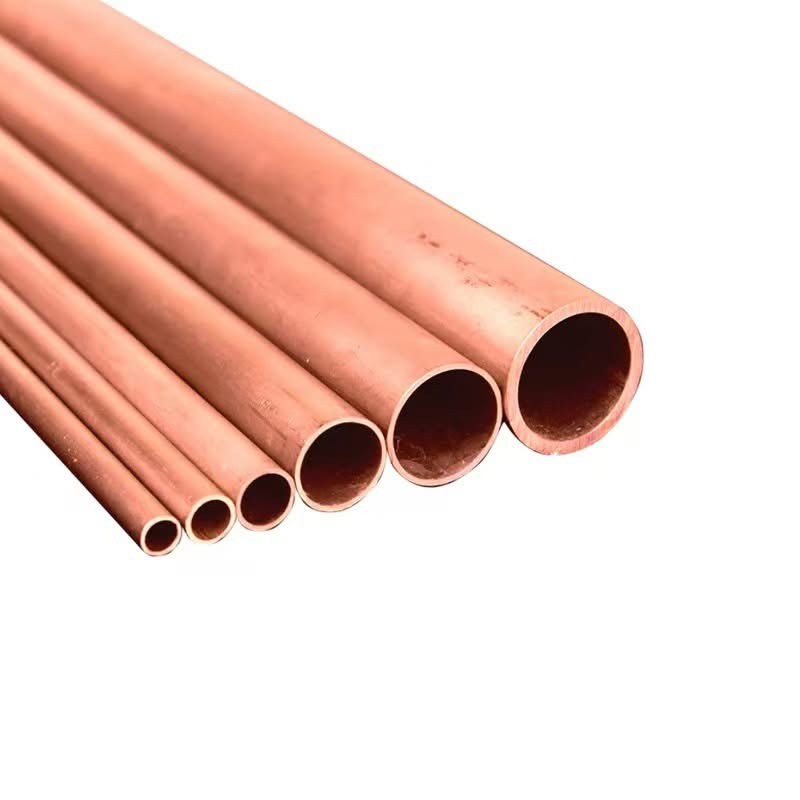

‑Coiled tube: soft temper coil for air‑condition & refrigeration.

Most industrial applications adopt seamless copper tube, specify seamless in order.

3. Temper

‑M Soft: coiled tube, bendable & flaring for HVAC‑R ‑Y2 Half.

‑hard: limited bending for plumbing .

‑Y Hard: straight rigid tube, not for heavy bending, high‑pressure piping.

‑Section: Round, Square, Hexagon ‑Process: Drawn / Extruded.

 ‑Length: random length or fixed cut‑to‑length, typical 1000‑6000mm, custom length available.

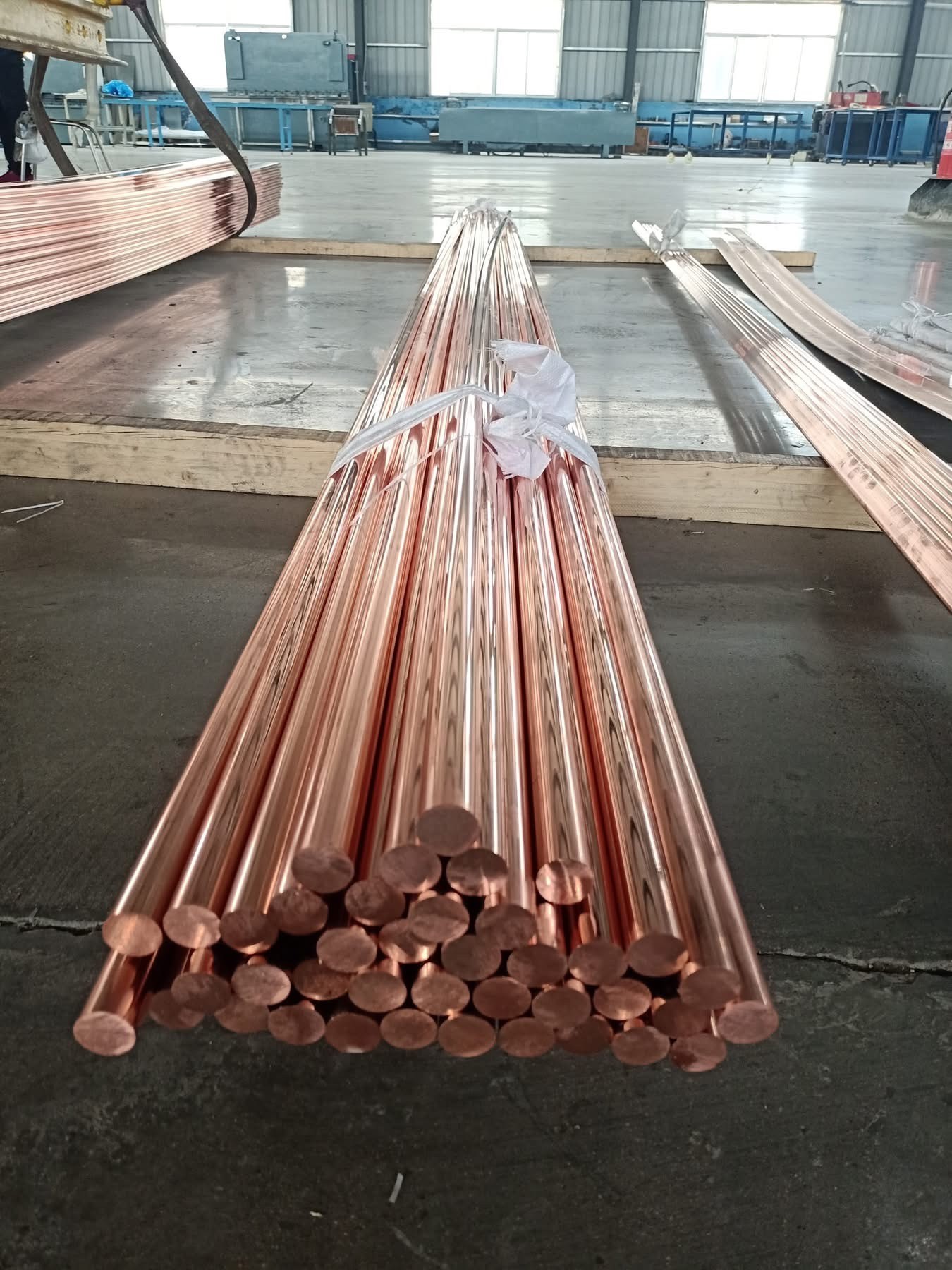

Copper Wire

‑Form: big coil / small coil / straight rod, bare copper without insulation.

‑Dimension: wire diameter (not insulated outer size).

3.  Temper

‑M: Soft (annealed, for bending & cold heading) .

‑Y2: Half‑hard (general purpose) .

‑Y: Hard (spring & high strength).

 ‑T: Extra‑hard.

4.  Dimension

1. Copper Bar: Round dia φ3‑120mm; square / hexagon across‑flat 3‑80mm, tolerance per GB/T4423

2. Copper Wire: diameter φ0.10‑12.0mm, coil inner diameter negotiable.

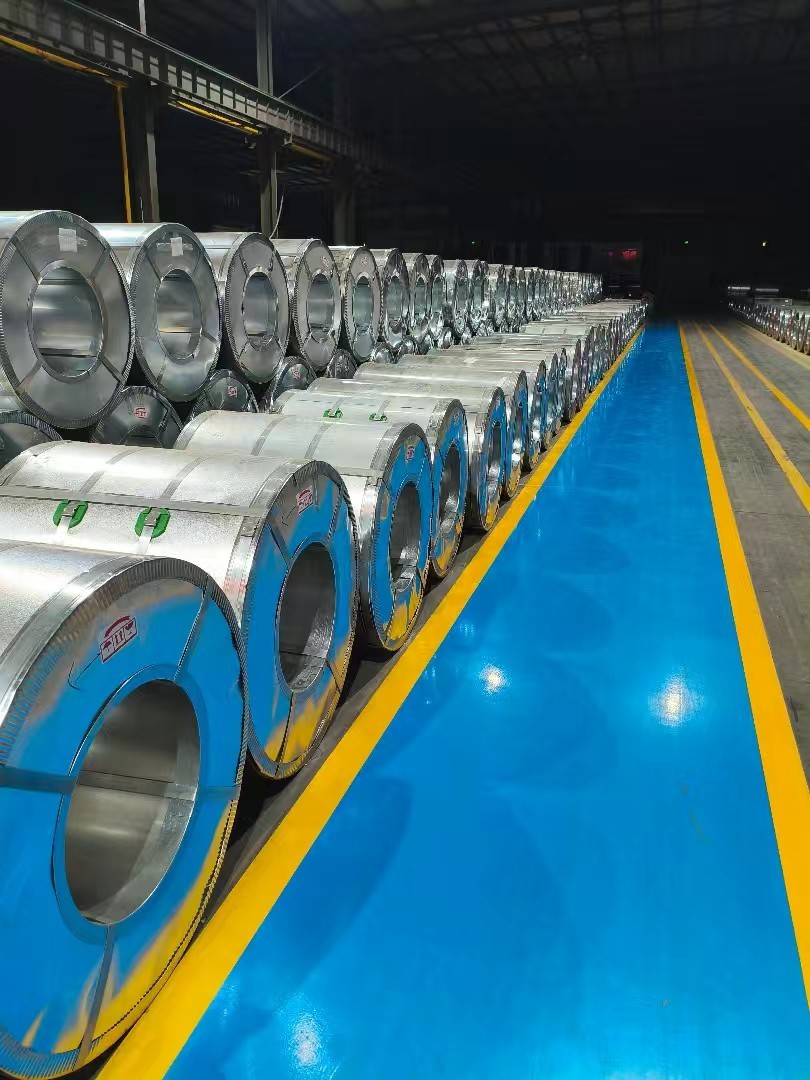

  Hot-dip galvanized steel coil/sheet (GI) is produced by continuously immersing cold-rolled steel substrate into molten zinc liquid. It features strong coating adhesion, excellent corrosion resistance and good forming performance. It is the main substrate for PPGI prepainted coils and widely used in construction, steel structure, home appliances and hardware processing.

二、Mandatory Order Parameters

1. Steel Grade

• DX51D+Z: General forming grade, common stock, for PPGI substrate, purlins and general hardware parts

• DX52D+Z: Improved bending grade for bending and light stamping

• DX53D+Z / DX54D+Z: Deep drawing grade for home appliance shells and complex stamped parts

• S220GD/S250GD/S350GD+Z: High-strength structural grade for load-bearing steel structures

2.  Zinc Coating Mass

Standard double-sided zinc coating: Z60, Z80, Z100, Z120, Z140, Z180, Z200, Z275 (g/㎡, total both sides). Higher value means better corrosion resistance and higher price. Z80-Z120 for inland use; Z180-Z275 for outdoor and humid environments.

3.  Dimension

• Thickness: 0.22mm–3.0mm (substrate thickness, excluding zinc coating)

• Width: 600mm–1500mm, custom slitting available

• Sheet: Custom cut-to-length size available

4. Surface Finish

• Normal Spangle: General industrial use, cost-effective

• Minimized Spangle: Fine surface texture

• Zero Spangle: Smooth surface without spangle, ideal for appearance parts, spraying and PPGI substrate

• Skin-passed: Improve flatness and eliminate stretcher strain

三、起订量 MOQ

MOQ: 5–10 tons for standard stock sizes. Higher MOQ for special thickness, high zinc coating and customized surface.

四、 Lead Time

 7–10 working days for stock goods; 10–20 working days for customized production, subject to extension in peak seasons.

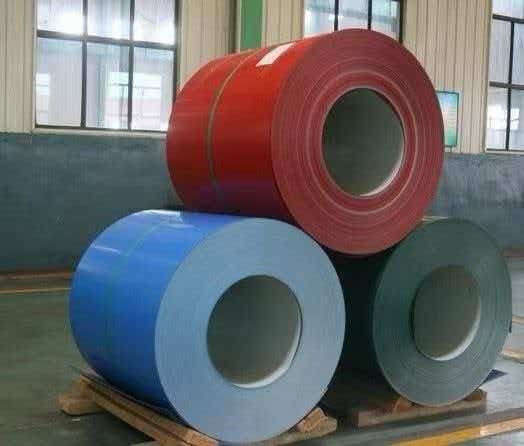

Chinese Name: Color‑Coated Steel Coil / 彩涂卷

Abbreviation: PPGI (Galvanized substrate), PPGL (Galvalume substrate)

Applicable Standard: GB/T 12754‑2019

1. Mandatory Technical Parameters for Ordering

1.1 Substrate

Substrate type

PPGI: Hot‑dip galvanized substrate GI (DX51D+Z)

PPGL: Hot‑dip galvalume substrate GL (DX51D+AZ)

ZM substrate: DX51D+ZM (for heavy corrosion‑prone areas)

Coating mass: Z80/Z100/Z120/Z180/Z275; AZ70/AZ100/AZ120/AZ150 (g/m², double‑side)

Steel grade: DX51D for general forming; DX52D / DX53D / DX54D for deep drawing. DX51D‑D or above is recommended for roofing & wall panels.

Nominal thickness: substrate thickness (excluding paint film), range: 0.22‑2.0 mm. Tolerance standard shall be clearly stated.

Width: Common range 600‑1250 mm, slitting to narrow width available upon request.

1.2 Coating System

Top‑coat paint type: PE Polyester, SMP Silicon‑modified Polyester, HDP High‑durability Polyester, PVDF Polyvinylidene Fluoride. Special options: self‑cleaning, heat‑reflective, anti‑bacterial coating.

Paint film thickness: Top‑coat 18‑25 μm, primer 5‑10 μm, back‑coat 5‑10 μm. Specify thickness requirement for both sides in contract.

Color: RAL colour number or domestic colour card. Final colour subject to supplier’s physical sample. Gloss level: high gloss / satin / matt.

Surface finish: smooth, embossed, wood grain, stone grain printing, etc.

1.3 Coil delivery parameters

Inner diameter: 508 mm / 610 mm

Unit coil weight: typical 3‑8 tons. Define min./max. coil weight; specify whether weld joints are allowed.

Weighing method: actual weight (weighed) or theoretical calculated weight. Actual weight is preferred.

Delivery condition: as‑coil; if cut‑to‑length required, state target length and flatness tolerance.

2. Commercial Order Terms

Minimum order quantity

Stock standard colour: 5‑10 ton

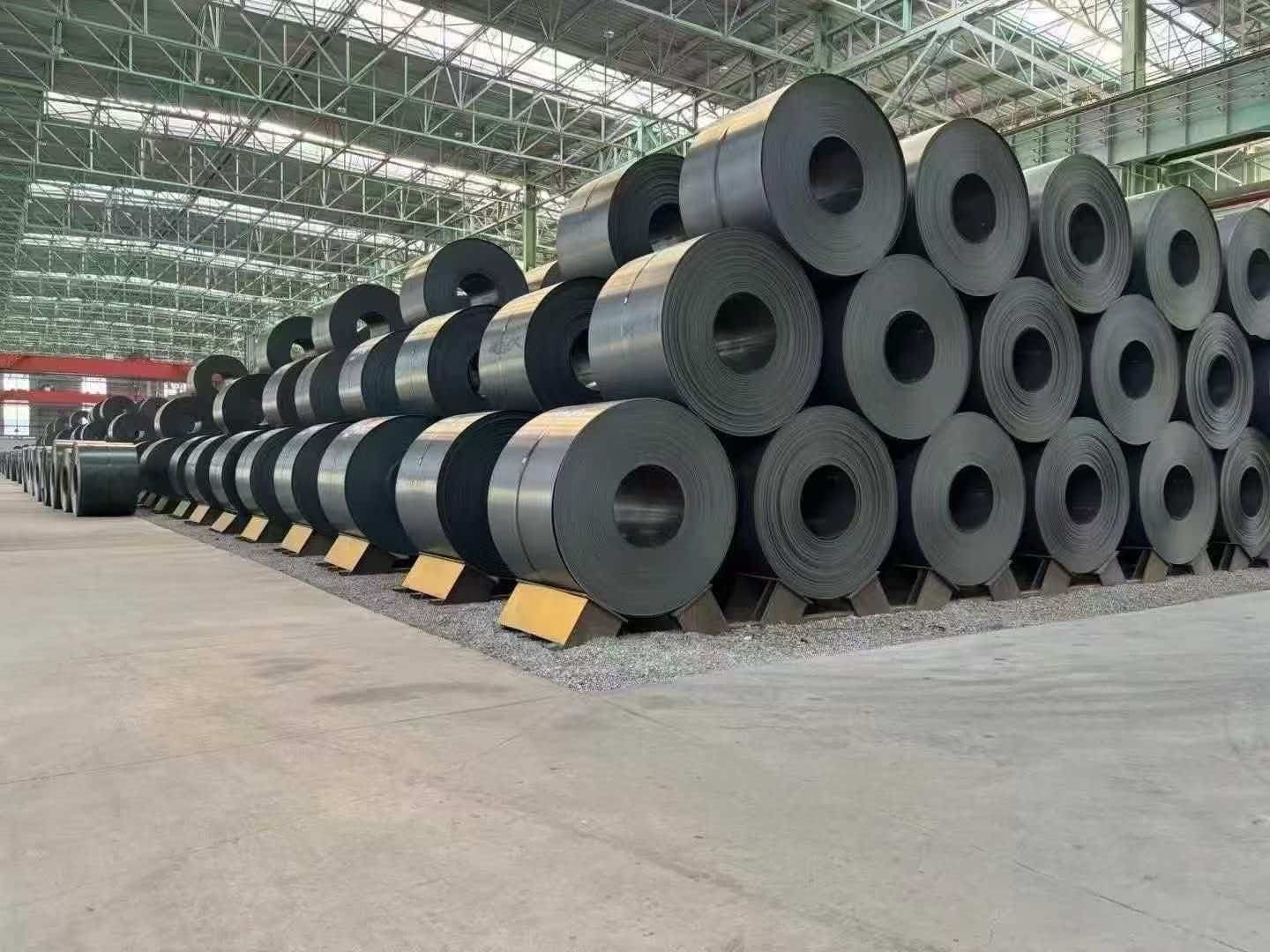

StandardASTM,AISI,DIN,EN,BS,SUS, JIS

MaterialQ195 ,Q215 ,Q235 ,Q255 ,Q275 ,SS330 , SS400, SS490, SS540, S185JR, S235JR, S235JRG1,

S235J0, S275J0, S275J2G3ASTM 1010, 1020, 1025, 1030, 1035, 1040, 1045, 1050, 1055, 1060, 1080,

1022 A53, A106, A192, A315b, ST33, ST37, ST35.8, ST42, ST45, ST52S10C, S20C, S25C, S30C, S40C,

S45C, S55C, S58C, SK5, C10, C20, C30, C45, C45, C60, C22E, C30E, C40E, C45E, C55E, C60E, C67E, C75E,

C85E, CK22, CK25, CK30, CK35, CK45, CK50, CK60, CK67

Technique: Cold Rolled, Hot Rolled

Thickness:1~50mm and customizable

Length:500-3000mm and customizable

width:24-2000mm or as required

Surface TreatmentMirror surface,polishing

Type:Plate

Origin:China

HS Code:7209250000

Delivery Time: 7-15 days，depends on quantity ordered

After-sales Service:24 hours online

Production Capacity:100000 Tons/Year

Loading PortAny port in China

Section ShapeRectangle

Application:1.Automobile, Bridges, Buildings.

  2.Machinery, Pressure vessel industries.

  3.Ship building, Engineering construction.

  4.Mechanical manufacturing, Pavement slab, ect.

PackagingStandard Sea-worthy Packaging

Processing ServiceBending, Welding, Decoiling, Punching,   Cutting

Tolerance±1%

MOQ: 5 tons

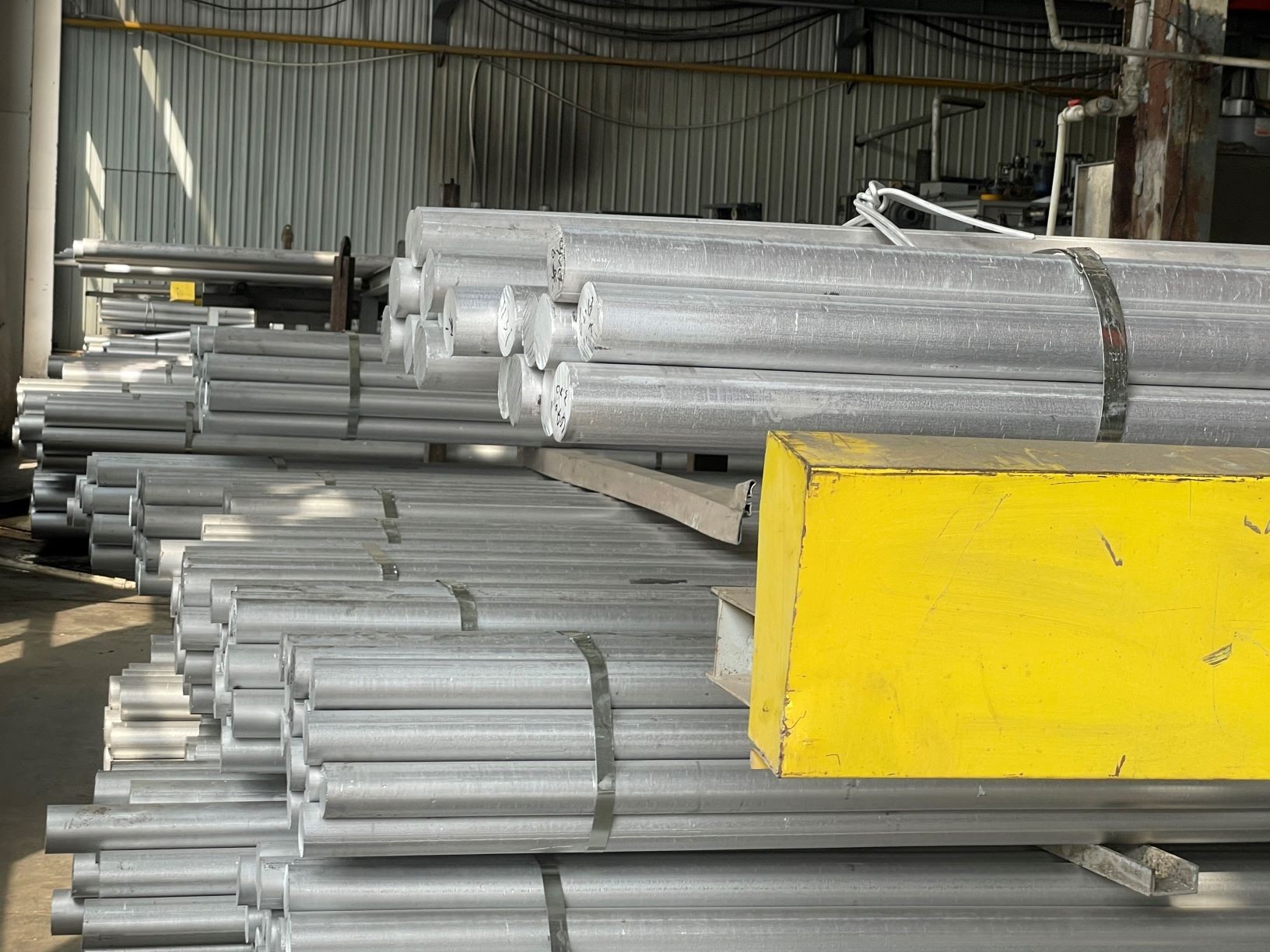

Product NameAluminium bar

StandardJIS, AISI, ASTM, GB, DIN, EN, etc.

Material1000 series: 1050, 1060, 1070, 1080, 1100, 1435,  etc. 2000 series:  2011, 2014, 2017, 2024,  etc. 3000 series: 3002, 3003, 3104, 3204, 3030,  etc. 5000 series: 5005, 5025, 5040, 5056, 5083,  etc. 6000 series: 6101, 6003, 6061, 6063, 6020, 6201, 6262, 6082,  etc. 7000 series: 7003, 7005, 7050, 7075, etc

TechniqueExtruded ,Precision Machining, Surface Treatment

Length1-12m or as required

Diameter0-650mm or as required

Surface TreatmentMill Finish,Coated,Anodized,etc

TypeBar

OriginChina

HS Code7604291090

Delivery Time7-15 days, depending on the situation and quantity

After-sales Service24 hours online

Production Capacity100000 Tons/Year

Loading PortAny port in China

Section ShapeRound

Application1.Lighting,solar reflector plate.2.Architectural appearance, interior decoration,  ceiling,  metope ,furniture, cabinets and so on.3. Elevator,nameplate, bags.4.Automotive interior and exterior decoration.5. Interior decoration: such as photo frame.etc

PackagingStandard Sea-worthy Packaging

Processing ServiceDecoiling, Welding, Punching, Cutting

Tolerance±1%

MOQ5 tons

Payment TermsTT, LC,Cash, Paypal, DP, DA,Western Union or Others.

Terms Of TradeEXW,FOB, CRF, CIF ,CNF or others
